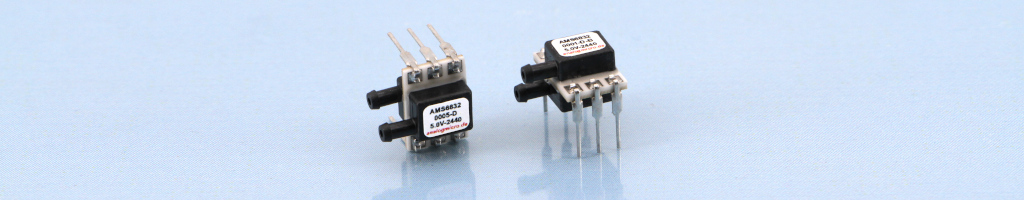

AMS 6832 - DIP-6 Pressure Sensor with Analog and Digital Output

OverviewPressure RangesAccessoriesDocumentsInquiry / Samples
DIP-6 Ultra Compact Pressure Sensor for Ultra-Low Pressures AMS 6832 with analog voltage output and I2C output.
AMS 6832 is a series of high precision pressure sensors combining a ratiometric analog voltage output with a digital I2C output. They are calibrated and compensated in a temperature range of -25 .. 85 °C. They are Board-Mount Pressure Sensor Series with Pressure Ranges from 125 up to 1000 Pascal.

Short Specifications

Pressure Ranges*

bidirectional differential:

-1.25 .. 1.25 mbar --> -10 .. 10 mbar

differential / gage:

 0 .. 2.5 mbar --> 0 .. 10 mbar

Total Error Band (TEB)
(T = -25 °C .. 85 °C)

2.0 %FSO (max.)

for ultra low pressure ranges

Ratiometric Output Voltage

0.5 .. 4.5 V

Digital Output Signal
(pressure and temperature)

0.1·224 ... 0.9·224 Counts
0.09·224 ... 0.75·224 Counts

for pressure
for temperature

Supply Voltage (VS)

4.75 .. 5.25 V (typ. 5 V)

Package

ceramic DIP-6 (width: 0.43 mil)

*AMS 6832 is calibrated in mbar. For detailed information on the pressure ranges in PSI and mbar please see "Pressure-Ranges".
